F Service Glue Plotters(Phoenix Glue Plotter)
- Check it out also on :
- https://www.fserviceplotter.com/en/
Description:
With over 30 years of experience in the POS/POP display market, and with hundreds of glue plotters installed worldwide, F Service Automation designs glue plotters that meet your exact needs.
Thanks to their simple software and intuitive interface, the glue plotters are easy to program and 100% reliable during every gluing session.
They are the ideal solution for gluing POS/POP displays, totems, crowners, luxury boxes, and much more.
We offer various models and dimensions to suit your requirements.
With an F Service Glue Plotter you will:
- Reduce gluing time by over 50% compared to hand-operated glue guns
- Avoid extra waste and returns from poorly glued products
- Increase production quality
- Manage production peaks with ease
- Reduce glue consumption
- Improve ergonomic working conditions

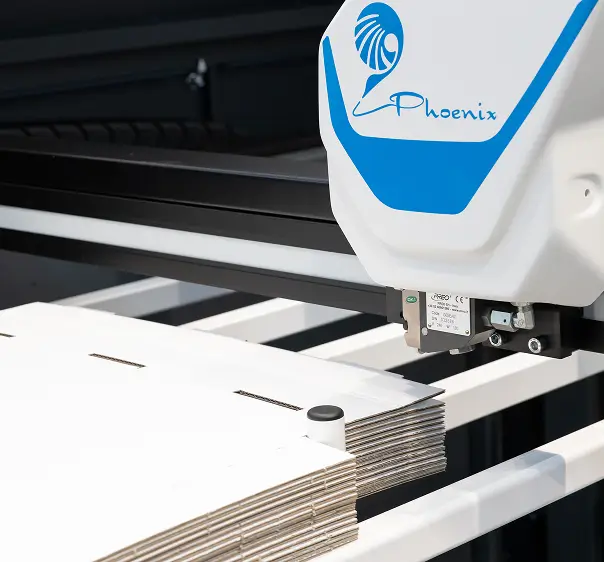

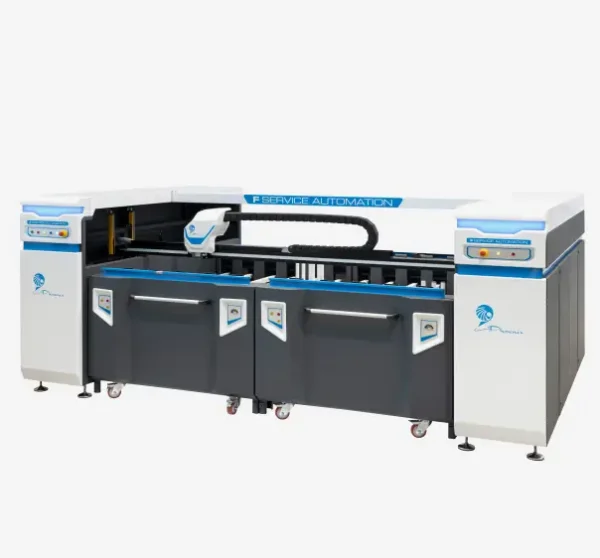

Technical Features – Phoenix®
- Material format: max. 2700 × 1750 mm
- Gluing speed: up to 2 m/s (120 m/min)
- Programming: via tablet / DXF file
- Glue heads: hot melt and vinyl cold glue (line and spray)
- Hot melt system: gear pump 5 / 10 / 15 kg
- Vinyl system: pneumatic pump 20 kg

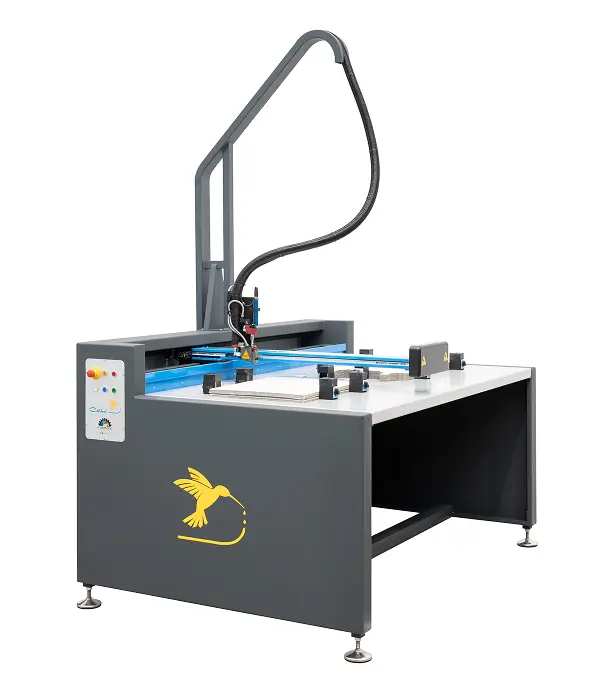

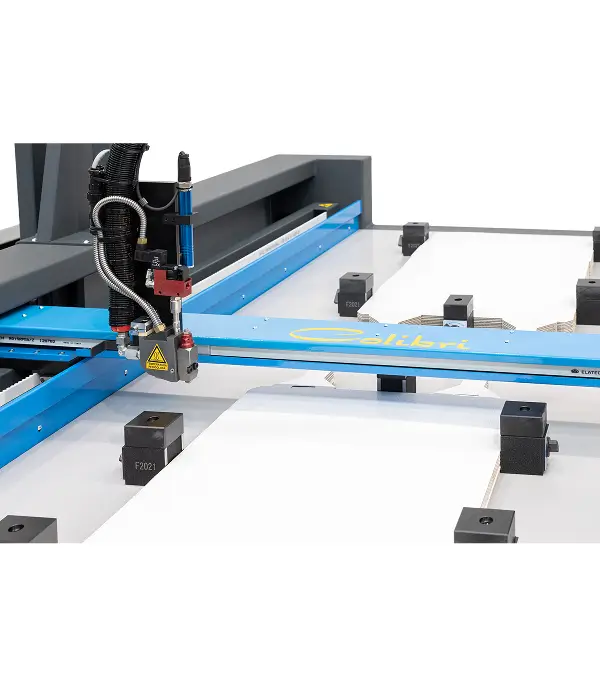

Technical Features – Colibri® 140
- Work area: 1400 × 850 mm
- Gluing speed: 1.7 m/s
- Motors: 2 brushless
- Axis: XY high-performance

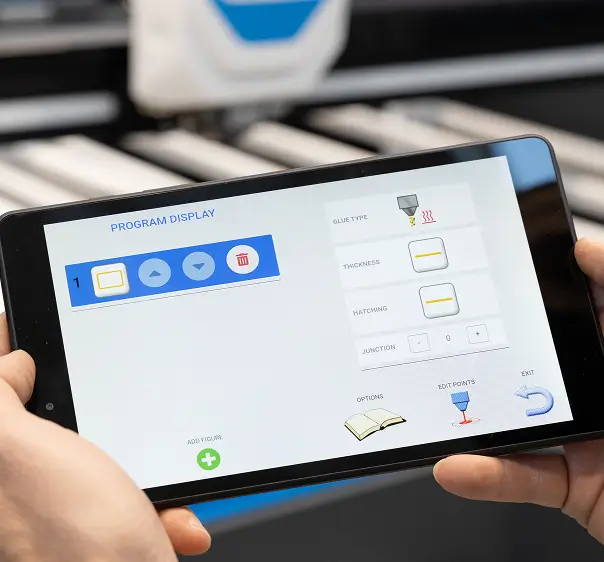

- Programming: tablet with F Service app
- Workstations: 2
- Elevator area: 1400 × 850 mm
- Remote assistance: Industry 4.0
- Hot melt system: gear pump (capacity 5 / 10 / 15 kg)
- Vinyl system: pneumatic pump
- Glue guns: Zero Cavity

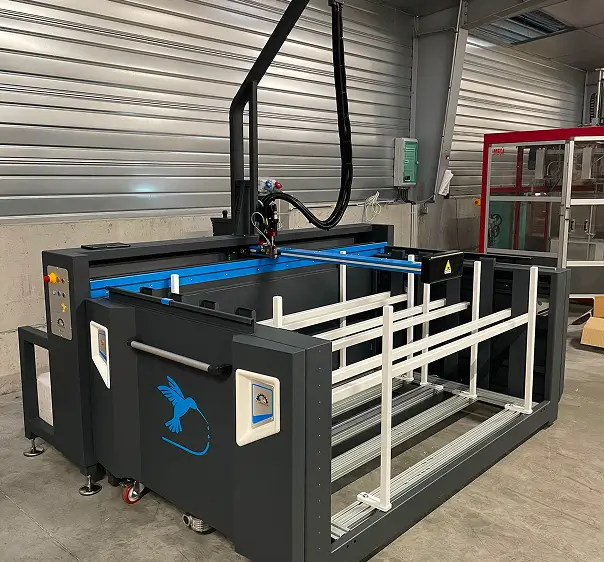

Technical Features – Colibri® 200
- Work area: 2000 × 1000 mm
- Gluing speed: 1.7 m/s
- Motors: 2 brushless
- Axis: XY high-performance
- Programming: tablet with F Service app
- Workstations: 2
- Elevator area: 2000 × 1000 or 1000 × 1000 mm
- Remote assistance: Industry 4.0
- Hot melt system: gear pump (capacity 5 / 10 / 15 kg)
- Vinyl system: pneumatic pump
- Glue guns: Zero Cavity
COLIBRI
PHOENIX
