Within seconds, a raw corrugated board becomes a die-cut to your required dimensions.

• Format change in 3 minutes
• Only 1 operator required
• The INFOMAC software enables online work by managing production, cost prices, and maintenance.

Technical Data

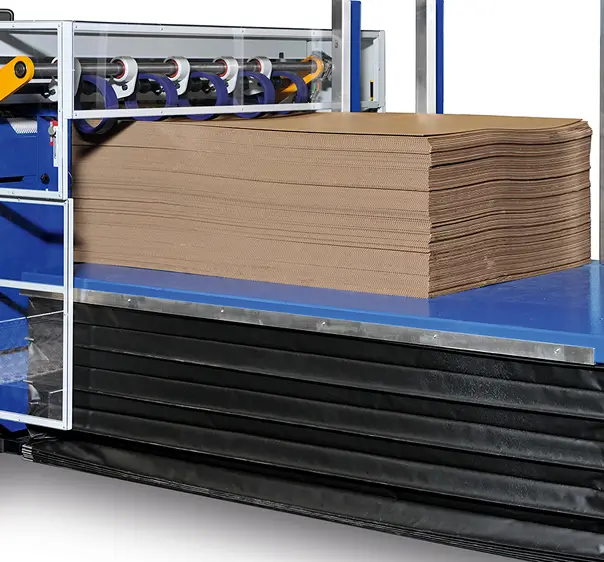

AUTOMATIC FEEDER

• Standard format: 1400 x 3000 mm
• Friction feed system (Mécanélec patent)

SINGLE PASS

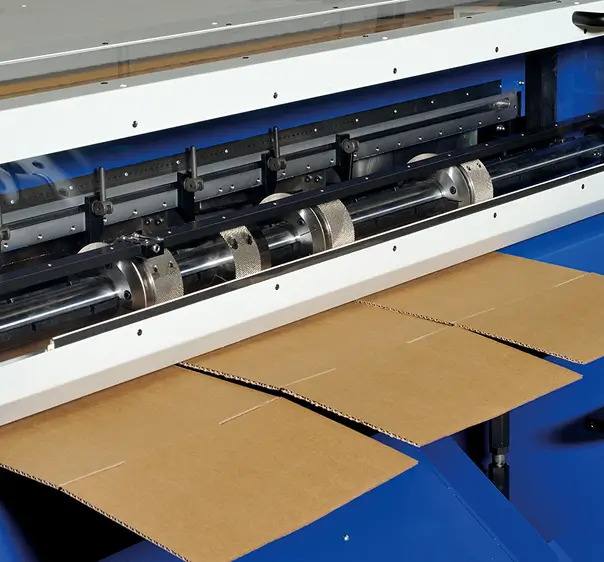

• Cross and longitudinal creasing
• Lateral and transverse cuts
• Notching, flap cutting
• Special cuts (Option 1 or 2): handles, cross boxes, fully overlapped flap boxes, ventilation holes…

IMPOSITION
Depending on the packaging dimensions to be manufactured, the MAC machine can produce several pieces from the same sheet.
Thus, machine capacity is maximized, ensuring optimal productivity.
Standard equipment: two boxes across, optional three boxes across.

AVERAGE PRODUCTION
The machine’s speed depends on the imposition.
Since it can produce several items across, output varies accordingly:

• 600 boxes per hour with 1 box across
• 1200 boxes per hour with 2 boxes across
• 1800 boxes per hour with 3 boxes across

TECHNICAL SPECIFICATIONS

• Automatic feeder, pile height: 1050 mm
• Feeding speed: 0 to 1600 mm/sec
• Minimum distance between two creases: 0 mm
• Required pneumatic pressure: 7 bars
• Required electrical power: 8 KW, 380 V three-phase + neutral
• Board thickness: 2 to 8 mm
